descriptions:

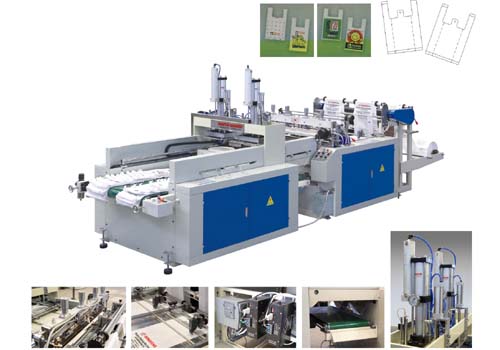

This machine is applied to manufacturing and printing the uncolored vest bags made of HDPE，LDPEroll film。It adopts PLC control，double servo（step）motor fixed length and the liquid crystal touch screen actual display to finish the feeding，sealing，cutting，punching holes and good economic result。
|
Model |
DFHQ-350×2 |
DFHQ-450×2 |
|
Max.Bag-making width |
300mm×2 |
400mm×2 |
|
Max.Bag-making length |
650mm |
650mm |
|
Bag-making thickness |
0.015-0.035mm |
0.015-0.035 |
|
Bag-making speed |
140-200pcs/min×2 |
140-200pcs/min×2 |
|
Air presssure |
5kg/cm2 |
5kg/cm2 |
|
Total power |
7kw |
9kw |
|
Weight of machine |
1400kg |
1600kg |
|
Overall dimensions |
6000×1400×1600mm(L×W×H) |
6000×1600×1600mm(L×W×H) | |
