Use：

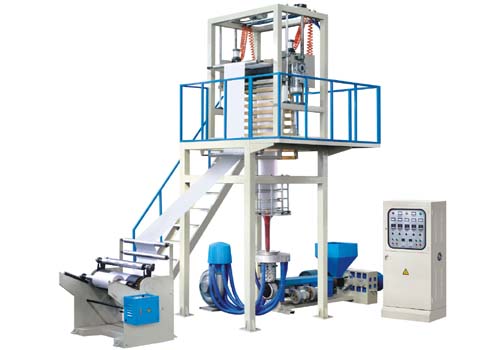

本Its extruder，cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness，durable in corrosion resistance。The specially-designed screw is of sound quality in plasticizing，which helps increase the production capacity. It is applied to biowing the plastic films like low density polytene（LDPE），high density polytene（HDPE）and linear low density polytene（LLDPE）. It is widely applied to producing the packing bags for foodstuff，clothing，rubbish bag and vest ones.
OPTIONAL EQUIPMENT：
1）AUTO LOAD 2)AIR COMPRESSOR 3)SPECIAL DIE 4)DIE ROTARY DEVICE 5)BOUBLE SIDES WINDER 6)UP AND DOWN
|
Model |
A50 |
A55 |
A65 |
A65-1 |
|
Diameter of screw |
φ50 |
φ65 |
φ65 |
φ65 |
|
Reduced diameter of film（mm） |
100-600 |
200-800 |
300-1000 |
400-1200 |
|
Single-face Thickness of film（mm） |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
0.01-0.10- |
|
Max.Extrusion（kg/h） |
35 |
50 |
65 |
80 |
|
L/D |
26:1 |
26:1 |
26:1 |
26:1 |
|
Power of main motor（kw） |
7.5 |
11 |
15 |
18.5 |
|
Power of Traction motor（kw） |
0.75 |
0.75 |
0.75 |
0.75 |
|
Heating Power（kw） |
11 |
13 |
19 |
21 |
|
Outling diameter（L×W×H）(mm) |
4800×1900×3500 |
5500×2100×3800 |
6500×2300×4200 |
6500×2500×4600 |
|
Weight（T） |
1.5T |
2T |
2.3T |
2.6T |
