Feature：

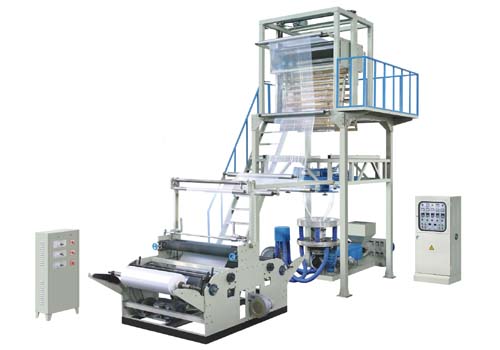

It is used for biowing high-low pressure polyethylene，which has been widely used for producing laminateing film，packing film，agricultural covering film，bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stabiblity of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is，big or small，it can achieve the best effect of cooling.
OPTIONAL EQUIPMENT：
1）AUTO LOADERER
2）EMBOSSING ROLLER
3）FILM SURFACE TREATER
4）DIE ROTARY DEVICE
5）AIR COMPRESSOR
6）MECHANICS SCREEN CHANGER
7）UP AND DOWN
|
Model |
SJ-B50型 |
SJ-B55型 |
SJ-B65型 |
SJ-B65型 |
SJ-B65-1型 |
|
Screw Diameter |
50mm |
55mm |
60mm |
60mm |
65mm |
|
Screw Ratio（L/D） |
28:1 |
28:1 |
28:1 |
28:1 |
28:1 |
|
Screw Speed |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
|
Power of Main Motor |
11kw |
15kw |
15-18.5kw |
15-18.5kw |
18.5-22kw |
|
Max Output |
35kg/h |
50kg/h |
65kg/h |
65kg/h |
80kg/h |
|
Max.Folding Width of Film |
600mm |
800mm |
1000mm |
1000mm |
1200mm |
|
Single-sided Thickness of Film |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
|
Total Power |
22kw |
26kw |
30kw |
30kw |
36kw |
|
Weight of Machine |
2T |
2.3T |
2.6T |
2.6T |
3T |
|
Overall Dimensions |
4000×1800×3600mm |
4200×2000×4000mm |
4600×2300×4200mm |
4600×2300×4200mm |
4800×2500×4500mm |
