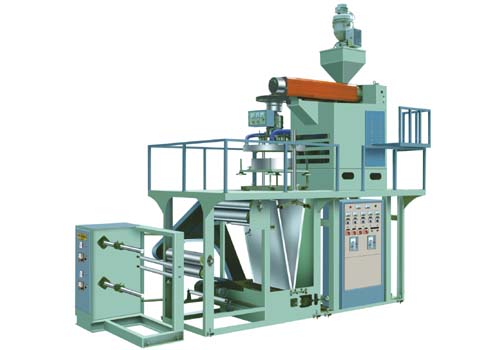

SJF-55、60、70 Series PP Film Blowing Machine
 Feature:

1.This screw material cylinder is elabroately made of 38CRMOALA alloy steel after nitrogen treatment and has best rigidity and corrosion resistance.
2.The mould head is plated with hard chromium and has discharging.and the aircooled device has labyrinth type structure with characteristic as uniform air-jut quantity,automatic temperature control and automatic heating.

 OPTIONAL EQUIPMENT:

1)AUTO LOADER
2)FILM SURFACE TREATER
3)DIE ROTARY DEVICE
4)AIR COMPRESSOR

Type
F55
F60
F70
Diameter of screw
φ55
φ60
φ70
L/D
28:1
28:1
28:1
Folding Width of film(mm)
100-500
100-600
300-800
Single-face Thickness of film(mm)
0.01-0.1
0.01-0.1
0.01-0.1
Max.Extrusion(kg/h)
30
45
60
Power of main motor(kw)
11
15
18.5
Power of Traction motor(kw)
1.1
1.1
1.5
Length of Traction roller(mm)
550
650
850
Outline diameter(L×W×H)(mm)
4500×2000×3500
4800×2500×3800
5000×2800×4000
Weight(T)
3
4
5
